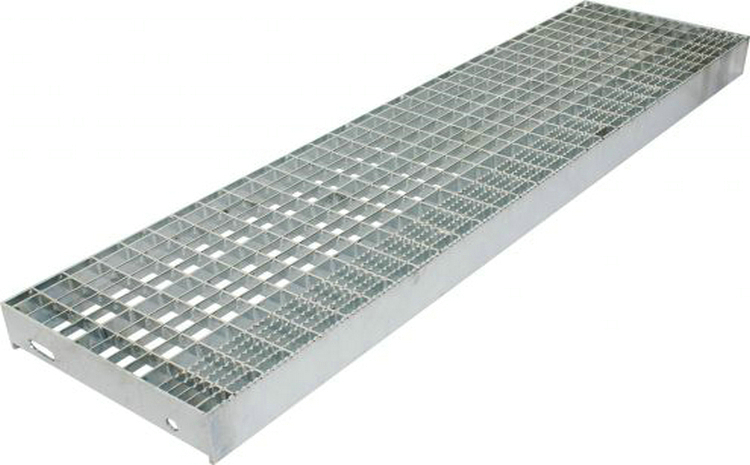

T三型踏步板介绍
产品描述
接下来我以表格的形式说明T三踏步板的各种型号规格
| T3钢梯踏步板 | |||||||
| 规格型号(mm) | 外形尺寸(mm) | 重量（kg） | 参考价格（元/块） | 规格型号(mm) | 外形尺寸(mm) | 重量(kg) | 参考价格（元/块） |
| 253/30/100 | 125*600 | 2.21 | 27 | 253/30/100 | 155*600 | 2.6 | 28 |
| 255/30/100 | 125*600 | 3.72 | 30 | 255/30/100 | 155*600 | 4.37 | 32 |
| 303/30/100 | 125*600 | 2.63 | 28 | 303/30/100 | 155*600 | 3.09 | 30 |
| 325/30/100 | 125*600 | 4.73 | 33 | 325/30/100 | 155*600 | 5.55 | 36 |
| 253/30/100 | 125*700 | 2.56 | 28 | 253/30/100 | 155*700 | 3.01 | 29 |
| 255/30/100 | 125*700 | 4.31 | 32 | 255/30/100 | 155*700 | 5.06 | 34 |
| 303/30/100 | 125*700 | 3.04 | 30 | 303/30/100 | 155*700 | 3.57 | 31 |
| 325/30/100 | 125*700 | 5.47 | 35 | 325/30/100 | 155*700 | 6.42 | 38 |
| 253/30/100 | 125*800 | 2.91 | 29 | 253/30/100 | 155*800 | 3.42 | 31 |
| 255/30/100 | 125*800 | 4.9 | 34 | 255/30/100 | 155*800 | 5.74 | 36 |
| 303/30/100 | 125*800 | 3.46 | 31 | 303/30/100 | 155*800 | 4.06 | 33 |
| 325/30/100 | 125*800 | 6.21 | 38 | 325/30/100 | 155*800 | 7.29 | 41 |
| 253/30/100 | 125*900 | 3.26 | 30 | 253/30/100 | 155*900 | 3.84 | 32 |
| 255/30/100 | 125*900 | 5.48 | 35 | 255/30/100 | 155*900 | 6.43 | 38 |
| 303/30/100 | 125*900 | 3.87 | 32 | 303/30/100 | 155*900 | 4.55 | 35 |
| 325/30/100 | 125*900 | 6.96 | 40 | 325/30/100 | 155*900 | 8.15 | 43 |
| 253/30/100 | 185*600 | 2.99 | 29 | 253/30/100 | 215*600 | 3.38 | 31 |
| 255/30/100 | 185*600 | 5.02 | 34 | 255/30/100 | 215*600 | 5.67 | 36 |
| 303/30/100 | 185*600 | 3.55 | 31 | 303/30/100 | 215*600 | 4.01 | 33 |
| 325/30/100 | 185*600 | 6.37 | 38 | 325/30/100 | 215*600 | 7.19 | 40 |
| 253/30/100 | 185*700 | 3.46 | 31 | 253/30/100 | 215*700 | 3.91 | 32 |
| 255/30/100 | 185*700 | 5.8 | 36 | 255/30/100 | 215*700 | 6.55 | 39 |
| 303/30/100 | 185*700 | 4.11 | 33 | 303/30/100 | 215*700 | 4.64 | 35 |
| 325/30/100 | 185*700 | 7.36 | 41 | 325/30/100 | 215*700 | 8.31 | 44 |
| 253/30/100 | 185*800 | 3.93 | 32 | 253/30/100 | 215*800 | 4.44 | 34 |
| 255/30/100 | 185*800 | 6.59 | 39 | 255/30/100 | 215*800 | 7.44 | 41 |
| 303/30/100 | 185*800 | 4.66 | 35 | 303/30/100 | 215*800 | 5.27 | 37 |
| 325/30/100 | 185*800 | 8.36 | 44 | 325/30/100 | 215*800 | 9.43 | 47 |
| 253/30/100 | 185*900 | 4.41 | 34 | 253/30/100 | 215*900 | 4.98 | 36 |
| 255/30/100 | 185*900 | 7.38 | 41 | 255/30/100 | 215*900 | 8.32 | 44 |
| 303/30/100 | 185*900 | 5.22 | 37 | 303/30/100 | 215*900 | 5.9 | 39 |
| 325/30/100 | 185*900 | 9.35 | 47 | 325/30/100 | 215*900 | 10.55 | 50 |
| 253/30/100 | 245*600 | 3.77 | 32 | 253/30/100 | 275*600 | 4.16 | 33 |
| 255/30/100 | 245*600 | 6.31 | 38 | 255/30/100 | 275*600 | 6.96 | 40 |
| 303/30/100 | 245*600 | 4.47 | 34 | 303/30/100 | 275*600 | 4.93 | 36 |
| 325/30/100 | 245*600 | 8.01 | 43 | 325/30/100 | 275*600 | 8.83 | 45 |
| 253/30/100 | 245*700 | 4.36 | 34 | 253/30/100 | 275*700 | 4.81 | 35 |
| 255/30/100 | 245*700 | 7.3 | 41 | 255/30/100 | 275*700 | 8.05 | 43 |
| 303/30/100 | 245*700 | 5.17 | 37 | 303/30/100 | 275*700 | 5.7 | 38 |
| 325/30/100 | 245*700 | 9.26 | 46 | 325/30/100 | 275*700 | 10.2 | 49 |
| 253/30/100 | 245*800 | 4.95 | 36 | 253/30/100 | 275*800 | 5.46 | 38 |
| 255/30/100 | 245*800 | 8.29 | 44 | 255/30/100 | 275*800 | 9.13 | 46 |
| 303/30/100 | 245*800 | 5.87 | 39 | 303/30/100 | 275*800 | 6.47 | 41 |
| 325/30/100 | 245*800 | 10.5 | 50 | 325/30/100 | 275*800 | 11.57 | 53 |
| 253/30/100 | 245*900 | 5.55 | 38 | 253/30/100 | 275*900 | 6.12 | 40 |
| 255/30/100 | 245*900 | 9.27 | 46 | 255/30/100 | 275*900 | 10.22 | 49 |
| 303/30/100 | 245*900 | 6.57 | 41 | 303/30/100 | 275*900 | 7.25 | 43 |
| 325/30/100 | 245*900 | 11.75 | 54 | 325/30/100 | 275*900 | 12.95 | 57 |
| 253/30/100 | 245*1000 | 7.33 | 44 | ||||
| 255/30/100 | 245*1000 | 11.45 | 53 | ||||
| 303/30/100 | 245*1000 | 8.46 | 47 | ||||
| 325/30/100 | 245*1000 | 14.18 | 61 | ||||
| 253/30/100 | 275*1000 | 8.11 | 46 | ||||
| 255/30/100 | 275*1000 | 12.64 | 56 | ||||
| 303/30/100 | 275*1000 | 9.35 | 50 | ||||
| 325/30/100 | 275*1000 | 15.65 | 65 | ||||
有需要请联系：15613110663 汉威周亚文。欢迎您的来电，两分钟解决您的疑惑。
